Overview
CandidTech's vehicle mounted GMSL camera with 1 - megapixel resolution. Equipped with the SmartSen CMOS sensor, it ensures high quality image capture. The integrated Maxim96705 deserializer enables seamless data transfer. It is a prime choice for 360 - degree surround - view systems across all vehicle types.
Featuring a 200 degree ultra wide angle lens, it offers an expansive field of view. Its night vision function guarantees clear visuals even in low light conditions. With 120dB HDR performance, the camera can capture details in both bright and dark areas simultaneously.
Rated at IP69 for waterproofing, this camera can withstand the harshest water - related challenges, making it ideal for various automotive applications.
More Specifications
| Image Sensor | CMOS |
| Resolution | 1280(H) x 960(V) |
| Field of View (FOV) | H: 200±5° V: 155±5° |
| FNO | 2 |
| Frame Rate | 30 fps |
| Minimum Illumination | 1 lux |
| Dynamic Range | 120dB |
| Automatic White Balance (AWB) | Yes |
| Automatic Gain Control (AGC) | Yes |
| Automatic Exposure Control (AEC) | Yes |
| Transmission | GMSL |
| Image Output | Mirrored/Non-mirrored |
| Response Time | ≤500ms |
| Operating Temperature | -40℃～85℃ |
| Storage Temperature | -40℃～95℃ |
| Operating Humidity | ≤95%RH |
| Working Voltage | 6~16VDC |
| Working Current | 150mA@8VDC |
| Waterproof rating | IP69K |
IMAGE DISPLAY
-
High definition day vision;
-
Night vision enhancement;
-
Dynamic assisted line available.
Compact Design
-
Length= 29±0.3mm
-
Width= 28.5±0.3mm
-
Height= 28.9±0.3mm
APPLICATIONS
Rear View Camera Display System(RVC)
RVC is one of the driver assistance system. It through the camera which installed on the rear of vehicle, to convert the rear view into electrical signals, and transmit to real-time video on the car display screen, to assist driver for reversing or parking.
Adding assisted line into the real-time video, can help driver to estimated the distance between bumper and rear obstacles, and take action in time to avoid accident. What's more, Candid's LVDS rear view camera had pass IP69K experiment, strictly meets the vehicle regulations.

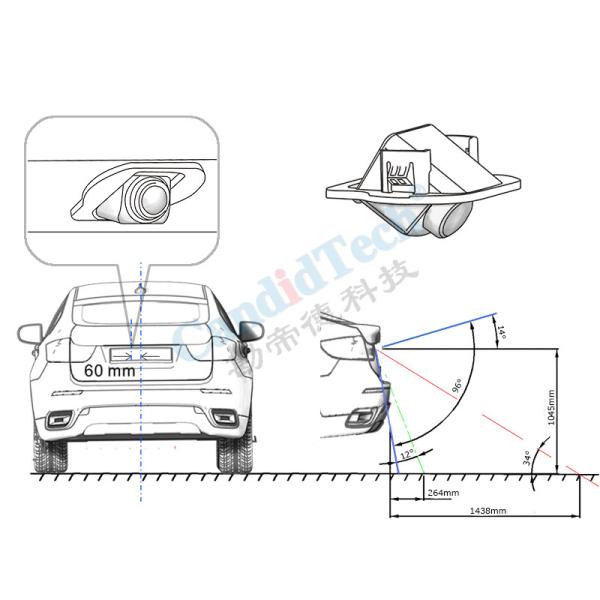

| Installated Position | 60mm to the left of rear center |
| Installation Height | 1045mm to the level ground |
| Installation | Angle 34° |
| Blind Spot Angle | 12° |
| Vertical Blind Spot Distance | 264mm |
| Angle of Elevation | 14° |
Remarks
1. Above installation status are for reference only, the actual installation will be based on practical car data.
2. The installation for camera must comply with local law and regulations.
Our current product lines cover vehicle cameras for different applications: including rear view, front view, side view and around view, Dash Cameras, Around View Monitoring Systems, ADAS products,CMS(Camera Monitor System) ,OMS(Occupant monitor system),DMS(Driver Monitor System), and the like. Please email:sales2@candidelectronics.com for more details.
